PRODUCT DETAILS

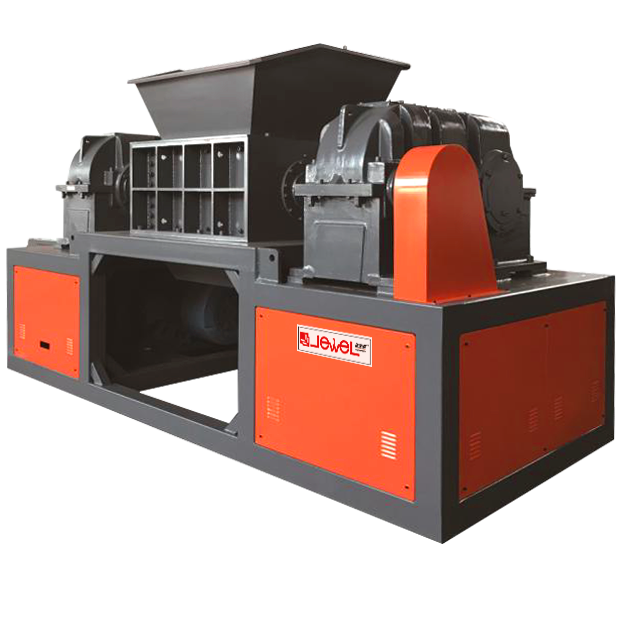

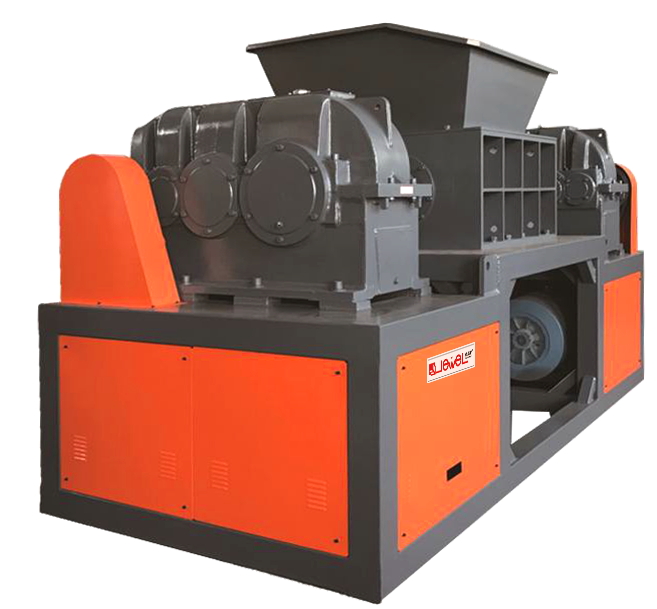

Designed for core heavy-duty applications, this shredder employs a high-performance planetary reducer, delivering exceptional performance with low speed, high torque, and high stability. It features a large feed size, strong throughput, and high crushing efficiency, specially built for processing large and high-strength materials.
The transmission uses German-standard spline connections, offering high torque, precise positioning, even force distribution, and strong load capacity. Equipped with an automatic bearing lubrication system, it ensures continuous oiling, significantly extending bearing and equipment life. The fixed cutters are precision wire-cut, closely matched with spacer sleeves, and features table installation, strong interchangeability, and exceptional durability.
Technical Parameters
Model | Power | Blade Width（mm） | Blade Quality | Blade Materials | Feeding Size | Shredding Chamber Dimension | Output Width(Customizable Length) | Capacity(Ton) |
JP-DS1300S | 55*2 | 45/50 | 28/24 | Mov | 1500*750 | 1320*720 | 45/50 | 3-4 |
JP-DS1400S | 75*2 | 60 | 24 | Mov | 1600*900 | 1420*800 | 50 | 4-5 |
JP-DS1500S | 90*2 | 60 | 24 | Mov | 1700*1000 | 1520*900 | 60 | 5-6 |
JP-DS1600S | 110*2 | 60 | 24 | Mov | 1800*1000 | 1620*900 | 60 | 6-1 |
JP-DS1700S | 132*2 | 80 | 18 | Mov | 1900*1200 | 1720*1000 | 80 | 7-8 |
JP-DS1800S | 160*2 | 80 | 20 | Mov | 2000*1200 | 1820*1000 | 80 | 8-9 |
JP-DS1900S | 220*2 | 100 | 20 | Mov | 2100*1500 | 1920*1200 | 100 | 10-12 |
JP-DS2000S | 280*2 | 100 | 20 | Mov | 2200*1800 | 2020*1500 | 100 | 12-20 |
