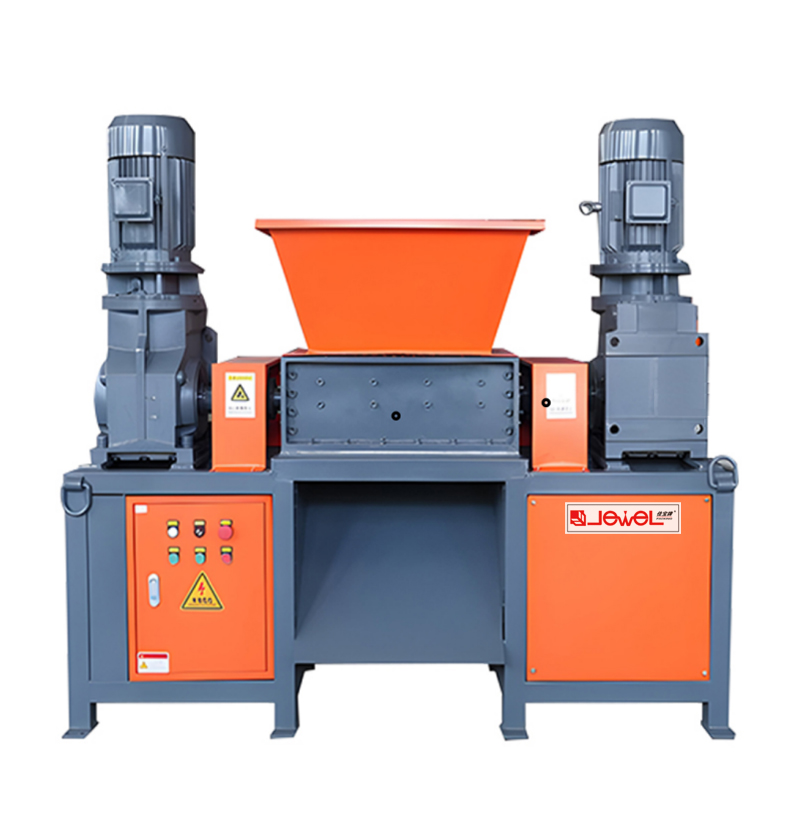

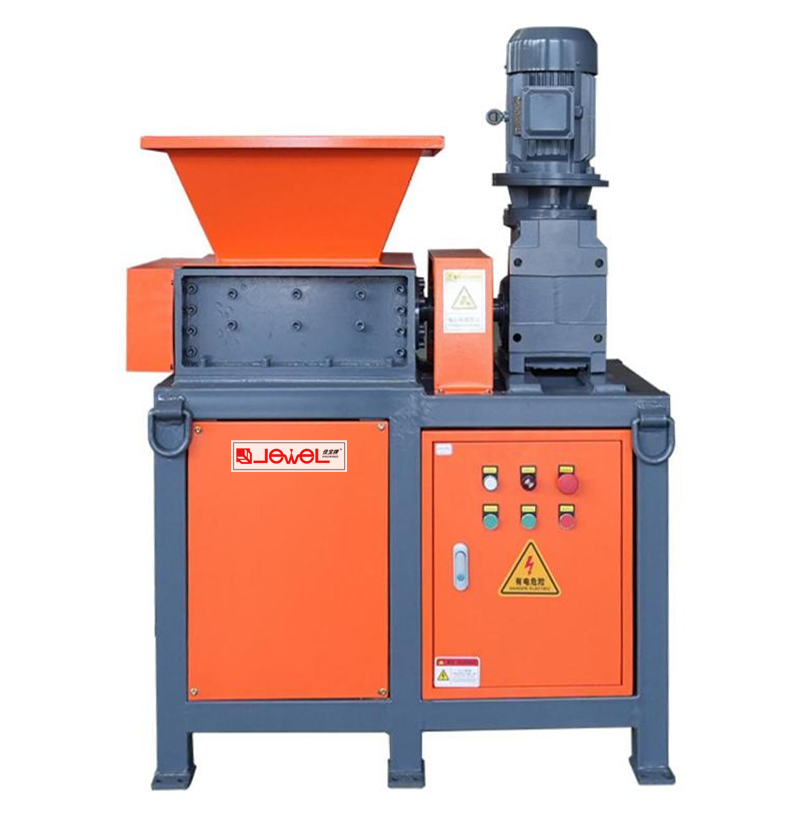

Small Dual-Shaft Shredder
Small Dual-Shaft Shredder
Small Dual-Shaft Shredder
Small Dual-Shaft Shredder

Small Dual-Shaft Shredder

Scope of Application:

PRODUCT DETAILSAt the heart of the equipment are two inter meshing cutter shafts,which achieve powerful shredding through precise shearing and tearing. The output size is flexibly controlled: thinner

Technical Characteristics

  • Automation

    Adopting an automatic weighing system
  • User-Friendly Design

    The loading port is set at a distance of 70CM above the ground, achieving easy loading and user-friendly design
  • Quality Assurance

    All electrical and pneumatic components are made of German and Japanese brands

Technical Parameter

PRODUCT DETAILS

At the heart of the equipment are two inter meshing cutter shafts,which achieve powerful shredding through precise shearing and tearing. The output size is flexibly controlled: thinner blades yield finer particles, while more cutter teeth result in shorter fragments,fully meeting your diverse requirements.

Integrating multiple advantages including low power consumption, high torque, low noise, and low dust, it offers wide applicability. It is an ideal solution for waste recycling, confidential destruction, transport volume reduction, and various solid waste processing needs.


Technical Parameters


Model

Power
Kw/Hp)

Blade Width(mm)

Blade Quality

Blade Materials

Feeding Size

Shredding

Chamber

Dimension

Output Width(Customizable Length)

Capacity(Ton)

JP-DS200

1.5

8

21

M6V

400*400

300*350

8

0.05-0.1

JP-DS300

3

12

24

M6V

400*400

300*350

12

0.1-0.2

JP-DS300S

3*2

12

24

M6V

400*400

300*350

12

0.1-0.2

JP-DS400

5.5

15

26

M6V

550*500

400*450

15

0.2-0.3

JP-DS400S

5.5*2

15

26

M6V

500*500

400*450

15

0.2-0.3

JP-DS500

7.5

20

24

M6V

650*600

500*550

20

0.3-0.5

JP-DS500S

7.5*2

20

24

M6V

650*600

500*550

20

0.3-0.5

JP-DS600S

11*2

30

20

M6V

650*600

610*550

30

0.4-0.6
