PRODUCT DETAILS

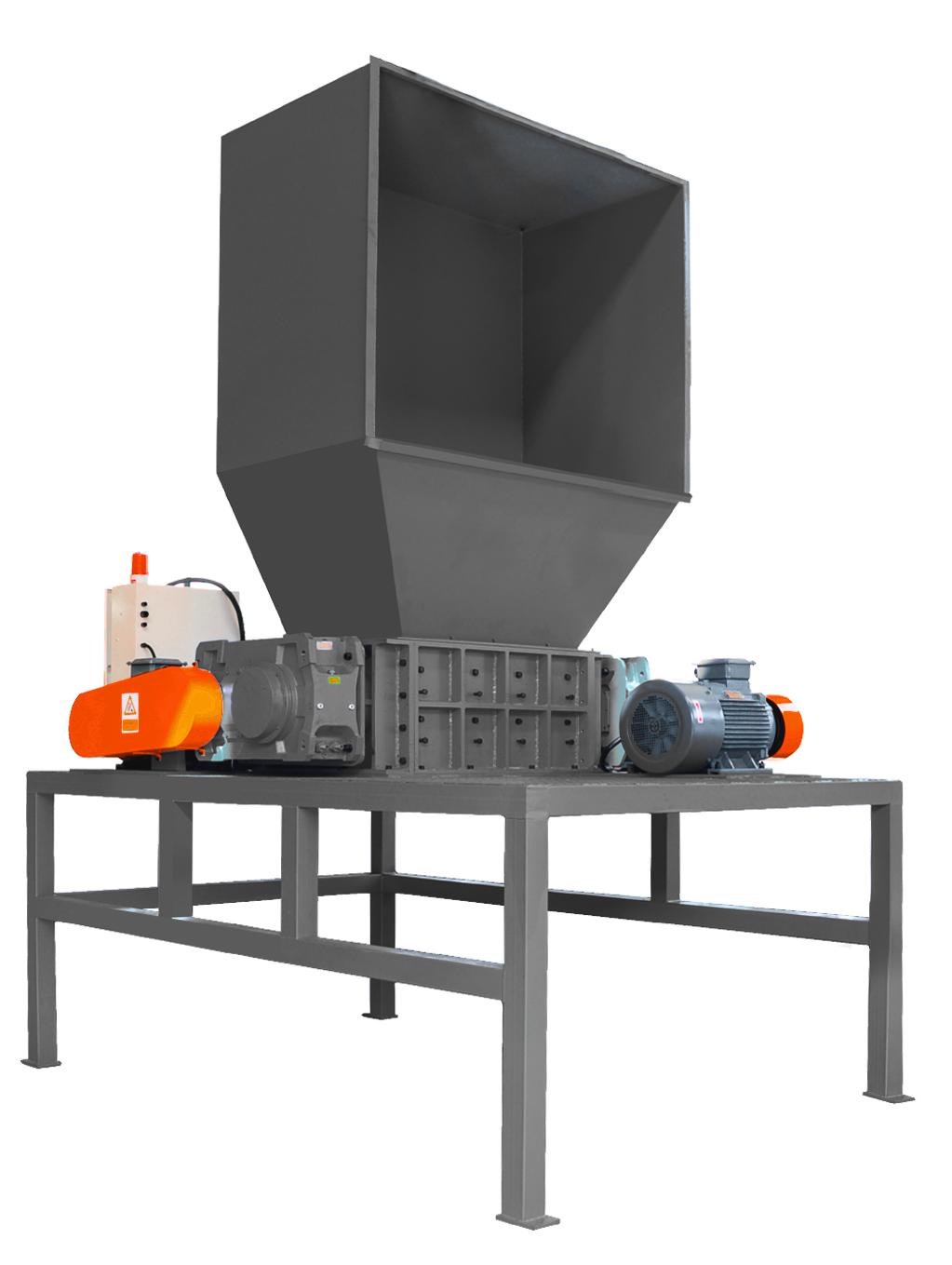

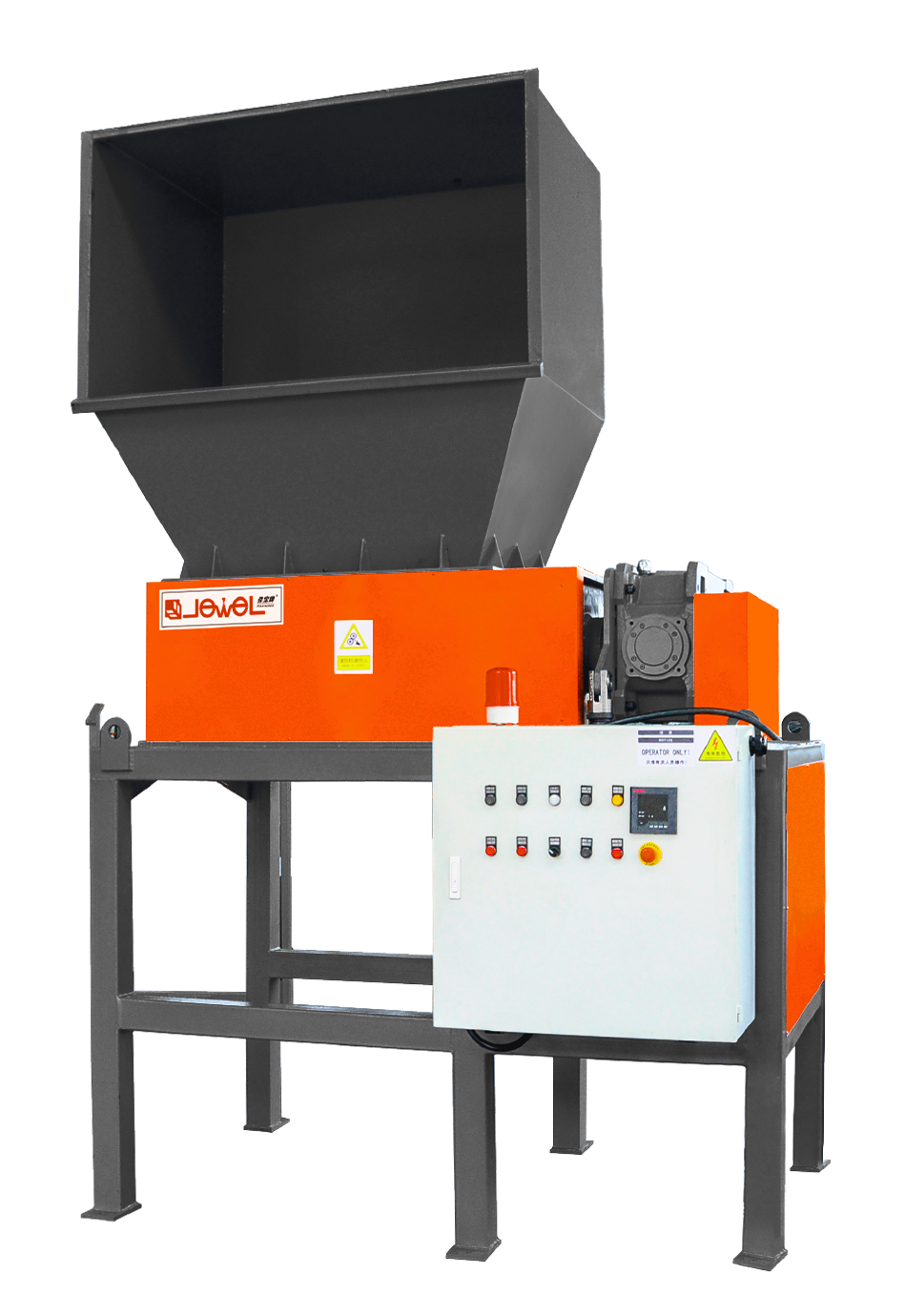

The power system integrates JZQ cylindrical gear and ZSY hard-face reducers. Utilizing belt drive and coupling connections, it achieves progressive speed change, effectively absorbs impact, and provides strong protection for the motor and reducer, ensuring stable overall operation.
Its core advantages include high torque, reliable connectivity, and low maintenance costs, complemented by a PLC auto-reverse protection system for intelligent jam prevention. It offers strong versatility and is widely used for processing automobile shells, wood, tires, scrap iron, plastic pallets, industrial solid waste, hazardous waste, municipal solid waste, and more.
Technical Parameters
Model | Power | Blade Width（mm） | Blade Quality | Blade Materials | Feeding Size | Shredding Chamber Dimension | Output Width(Customizable Length) | Capacity(Ton) |
JP-DS700 | 30 | 30/40 | 24/20 | Mov | 800*550 | 700*600 | 30/40 | 0.5-0.7 |
JP-DS800 | 37 | 40/50 | 20/16 | Mov | 1500*750 | 800*720 | 40/50 | 0.7-1 |
JP-DS900 | 45 | 40/50 | 24/20 | Mov | 1500*750 | 920*720 | 40/50 | 1-1.5 |
JP-DS1000 | 55 | 40/50 | 26/22 | Mov | 1500*750 | 1020*720 | 40/50 | 1.5-2 |
JP-DS1100 | 30+30 | 50 | 40/24 | Mov | 1650*750 | 1120*720 | 50 | 2-2.5 |
JP-DS1200 | 45+45 | 50 | 42/26 | Mov | 1750*750 | 1220*720 | 50 | 2.5-3 |
